High performance in sheet-fed design

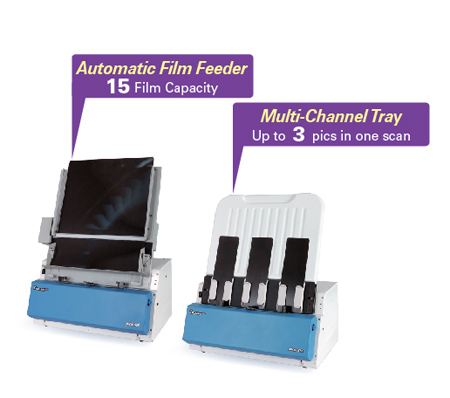

Optional 15-sheet automatic film feeder and 3-sheet multi-channel tray
High quality
1200 dpi resolution and 16-bit grayscale capability.
Powerful Software Features
Provides powerful image management, including image archiving, inquiry, measurement tools, notation, reporting, viewing, CD burning, transferring, converting to DICONDE format, etc.
Support DICONDE
Conform with ASTM DICONDE standard digitalized and transferring.
Spesifikasi Produk:
Item | Details |
---|---|
Product Name | MII-900 Plus |
Scanner Type | Sheet-fed film digitizer |
Image Sensor Type | CCD |
Resolution | 1200 dpi |
Light Source | LED |
Scanning Area | 14" x 200" (355.6 x 5080 mm) |
Scanning Speed | 18 seconds at 300 dpi in grayscale per 14" x 17" film |
Bit Depth | 8 / 16-bit grayscale |
Film Size | Min:2.5" x 2.5" (63.5 mm x 63.5 mm) |
Max:14" x 200"(355.6 x 5080 mm) | |
Connectivity | Hi-Speed USB (USB 2.0) |
Scanable Media Types | Transparent |
Supported Film Types | 8.5" x 4.5", 12" x 3 1/3" |
OS Support | Windows XP/ Windows 7 / 10 (ScanWizard Industry) |
Dimensions (L x W x H) | 10.2" x 18.7" x 9.3"/ 260 x 474 x 235 mm |
Weight | 19.82 lbs (9 kg) |
Certifications | CE, FCC, BSMI, ETL, CCC, RoHS |
Power Source | AC 100V ~ 240V, 47 ~ 63 Hz, 1.5A Max |
Power Consumption | 54.9 Watts |
Inbox Contents | Digitizer unit with film holders |
MiiNDT software kit | |
Bottom Bracket Assembly | |
Power cord | |
High-Speed USB 2.0 cable | |
CD (includes scanner scanning driver) | |
Manual | |
Accessories | Film holders (8.5" x 4.5", 12" x 3 1/3") |
Automatic Film Feeder (Optional) : Up to 15 pics of film (Min. 2.5”x10” / Max. 14“ x 17”) | |
Multi-channel tray (Optional) : Up to 3 pics of 30.5 x 8 |
